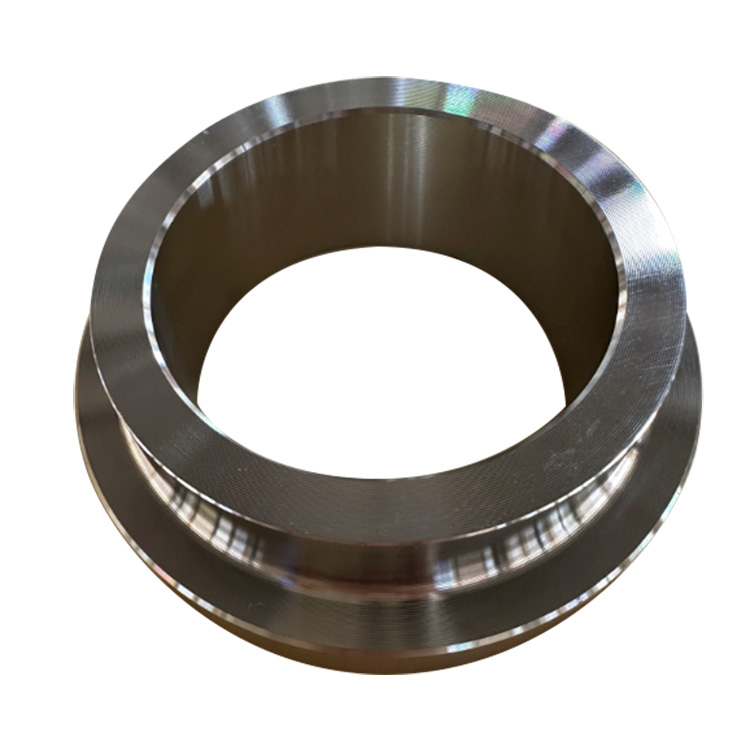

Huaxi Welded Socket Forged Special-Shaped Flange：Custom-Engineered Special-Shaped Flanges for Unique Piping Challenges

In the world of industrial piping, standard flanges don't always fit the bill. Complex pipeline layouts, extreme space constraints, or specialized connection requirements often demand solutions that go beyond catalog specifications. That's where special-shaped forged flanges come into play and that's where Jiangyin Huaxi Flange Co., Ltd., excel.

With over four decades of experience in flange manufacturing, we understand that every project has its own unique challenges. Our Welded Socket Forged Special-Shaped Flanges are engineered to meet those challenges head-on, delivering reliable performance in the most demanding applications.

What Makes a Flange "Special-Shaped"?

Unlike standard ANSI or DIN flanges, special-shaped flanges are custom-designed to meet specific engineering requirements. They can take virtually any form — from square-to-round transitions and eccentric reducers to flanges with integrated branch connections, temperature ports, or pressure taps. These are not off-the-shelf items; they are precision-engineered components that solve real-world piping problems.

Whether you need a one-off prototype or a small batch of highly specialized components, we offer complete customization services. Customers can provide drawings or samples, and our engineering team translates those requirements into finished products that fit perfectly into your system.

Why Forging Matters for Critical Connections?

For special-shaped flanges used in high-pressure or high-temperature environments, the manufacturing method makes all the difference. Forging — rather than casting — delivers superior mechanical properties through a refined grain structure that follows the shape of the part. This results in higher strength, better resistance to fatigue, and improved toughness compared to cast alternatives.

Our forging process ensures that every flange — no matter how unusual its shape — achieves the structural integrity required for demanding applications. The socket weld design further enhances reliability by allowing the pipe to be inserted into the flange recess before welding, creating a strong, leak-tight joint that eliminates dead spaces and reduces turbulence.

➟ Designed for Demanding Applications

Our special-shaped forged flanges are not limited to routine industrial uses. They are engineered to perform in critical sectors where failure is not an option. Our products have been widely applied in:

Wind power generation — connecting hydraulic and cooling systems in turbine towers.
Nuclear power generation — providing reliable connections in safety-critical circuits.
Shipbuilding — withstanding the harsh marine environment and vibration loads.
Pressure vessels — ensuring secure connections in high-pressure containment systems.
Petrochemical plants — handling corrosive media and extreme operating conditions.
Machinery manufacturing, aviation, aerospace, and military — where precision and reliability are paramount.

This broad application range reflects the quality and versatility of our forging capabilities. When a flange must withstand extreme pressures, temperatures, or environmental stresses, our special-shaped products deliver the performance that engineers demand.

➟ Materials and Specifications to Meet Every Requirement

We support a wide range of materials and specifications to match your project needs. Our special-shaped flanges can be manufactured from:

Carbon steel (grades including A105, A106, Q235) for general industrial applications.
Stainless steel (grades including A182, A403) for corrosion-resistant requirements.
Alloy steel and duplex steel for specialized high-performance applications.

Pressure ratings are available from 150# through 2500#, and we support flange faces including FF (Flat Face), RF (Raised Face), and RTJ (Ring Type Joint). Our production capacity spans diameters from 1/2" to 24" and beyond for special orders, giving you the flexibility to specify exactly what your system requires.

➟ Our Production Capability — Built for Quality

Quality is not just a department; it is the foundation of our operations. We operate a comprehensive ISO9001 quality management system, with our quality department reporting directly to the General Manager. Every step of the production process is strictly controlled to ensure that non-conforming materials never enter our warehouse, never move to the next process, and never leave our factory.

Our facilities are equipped to handle complex orders with efficiency and precision. With 150,000 square meters of floor space, including 80,000 square meters of plant area, and a team of more than 1,000 people — including 115 senior and mid-level technical professionals and we have the scale and expertise to deliver on even the most demanding custom flange requirements.

Our equipment roster includes a 3,600-ton oil hydraulic press, 5-meter ring mills, 8-ton and 5-ton electro-hydraulic hammers, 2-5 meter vertical lathes, 5-meter NC drilling machines, and heat treatment furnaces. This allows us to produce 35,000 tons of ring-type forgings and 25,000 tons of finished flanges and pipe fittings annually, covering over 10,000 specifications and varieties.

We export to 28 countries and regions, including Japan, the United States, France, Germany, and Italy, and we hold self-run import and export rights. Whether your order requires compliance with JIS, ANSI, EN, DIN, BS, or GB standards — or a completely custom design based on your drawings and we have the capability and experience to deliver.

➟ Your Trusted Partner for Custom Flange Solutions

When standard flanges cannot solve your unique piping challenges, our special-shaped forged flanges offer the custom solution you need. With decades of expertise, comprehensive quality control, and the capacity to handle complex orders, we are ready to partner with you on your next project.

For inquiries, custom designs, or technical support, contact our team today. Let us show you why we are the trusted choice for forged flange solutions worldwide.
